Absylux® SD-A

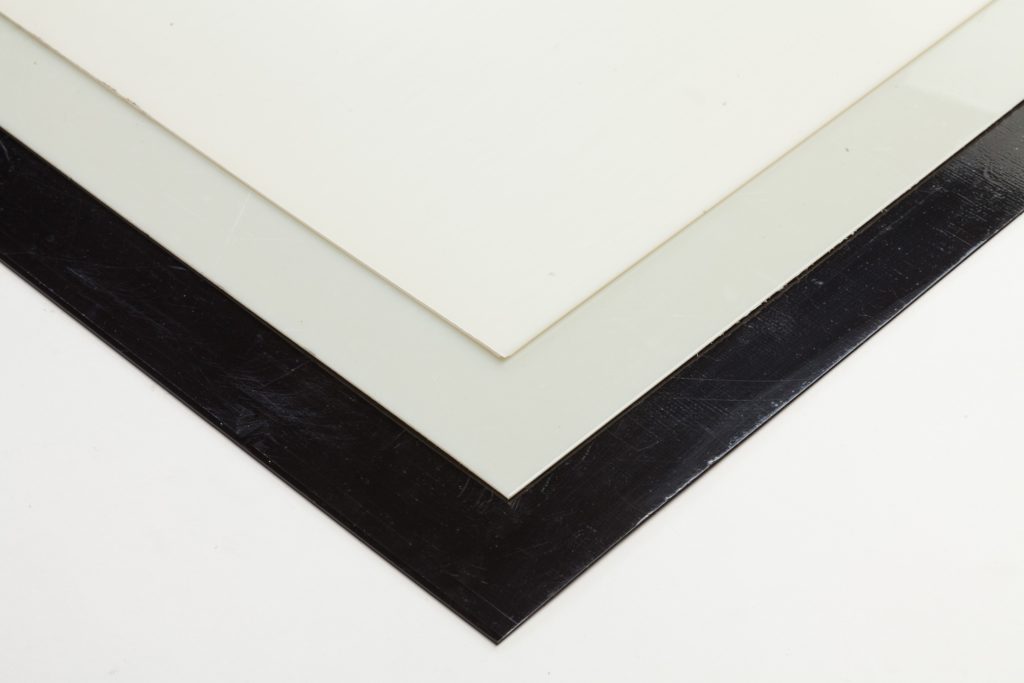

Absylux® ABS SD-A is a permanently antistatic Acrylonitrile Butadiene Styrene with surface resistivity of 109 – 1011 ohm/sq. The material is a non-carbon filled product, available in both natural and black color. It is ideal for protection against static discharge in electronic applications where contamination from potential sloughing of carbon powder would be of concern. Absylux® ABS SD-A is easy to machine and fabricate.

Request Quote

Download Datasheet

Industry

Engineering

Semiconductor and ESD

Attributes

Shapes

Colors Available

Typical Properties

Download Data Sheet

Property	Test Standard	English Units	Metric Units
Mechanical
Flexural Modulus	D790	300 kpsi	2,068 MPa
Flexural Strength - Yield	D790	10 kpsi	69 MPa
Izod Impact Resistance - Notched	D256	2.5 ft·lb/in	133 J/m
Tensile Elongation @ Yield	D638	>10 %	>10 %
Tensile Modulus	D638	280 kpsi	1930 MPa
Tensile Strength @ Yield	D638	6 kpsi	41 MPa
Thermal
HDT @ 264 psi	D648	170 °F	76 °C
Physical
Specific Gravity	D792	1.06	1.06
Electrical
Surface Resistivity	D257	10⁹-10¹¹ ohm/sq	10⁹-10¹¹ ohm/sq
*Data above is based on testing of injection molded test specimens

Rod Sizing

Sheet Sizing

Film Sizing

48"L

2.5" (63.5mm)

2.75" (69.85mm)

96"L

0.5" (12.7mm)

0.625" (15.88mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.375" (34.93mm)

1.5" (38.1mm)

1.625" (41.28mm)

1.75" (44.45mm)

1.875" (47.63mm)

2" (50.8mm)

Compression Sheet Sizing

48"L x 24"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1.0" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2.0" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3.0" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4.0" (101.6mm)

4.25" (107.95mm)

4.5" (114.3mm)

4.75" (120.65mm)

5.0" (127mm)

5.25" (133.35mm)

5.5" (139.7mm)

5.75" (146.05mm)

6.0" (152.4mm)

96"L x 48"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

120"L x 48"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

120"L x 60"W

0.25" (6.35mm)

0.375" (9.53mm)

0.5" (12.7mm)

0.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.50" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.50" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.50" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

4.25" (107.95mm)

4.50" (114.3mm)

4.75" (120.65mm)

5" (127mm)

5.25" (133.35mm)

5.50" (139.7mm)

5.75" (146.05mm)

6" (152.4mm)

26"W

0.01" (0.25mm)

0.02" (0.51mm)
