Fluorolux™ Family

Fluorolux™

Fluorolux™ Polyvinylidene Fluoride (PVDF) is a semi-crystalline, high purity thermoplastic fluoropolymer that offers excellent corrosion and chemical resistance at both ambient and elevated temperatures. PVDF is one of the most rigid and abrasion resistant of the melt-processible fluoropolymers. With service temperatures up to 150°C, PVDF is also inherently UV stable, mechanically tough, and abrasion, flame, and smoke resistant.

Request Quote

Download Datasheet

Industry

Aerospace & Defense

Chemical Process

Semiconductor and ESD

Attributes

Shapes

Colors Available

Typical Properties

Download Data Sheet

Property	Test Standard	English Units	Metric Units
Mechanical
Tensile Elongation @ Break	D638	>50%	>50%
Tensile Elongation @ Yield	D638	5% - 10%	5% - 10%
Tensile Modulus	D638	203 - 334 kpsi	1400 - 2300 MPa
Tensile Strength @ Break	D638	4 - 7 kpsi	30 - 50 MPa
Tensile Strength @ Yield	D638	6 - 8 kpsi	40 - 55 MPa
Thermal
HDT @ 264 psi	D648	221°F	105°C
Physical
Specific Gravity	D792	1.76 - 1.79	1.76 - 1.79
Hardness Shore D	D2240	73 - 80	73 - 80
Other
Water Absorption	D570	<0.04%	<0.04%
*Data above is based on testing of injection molded test specimens

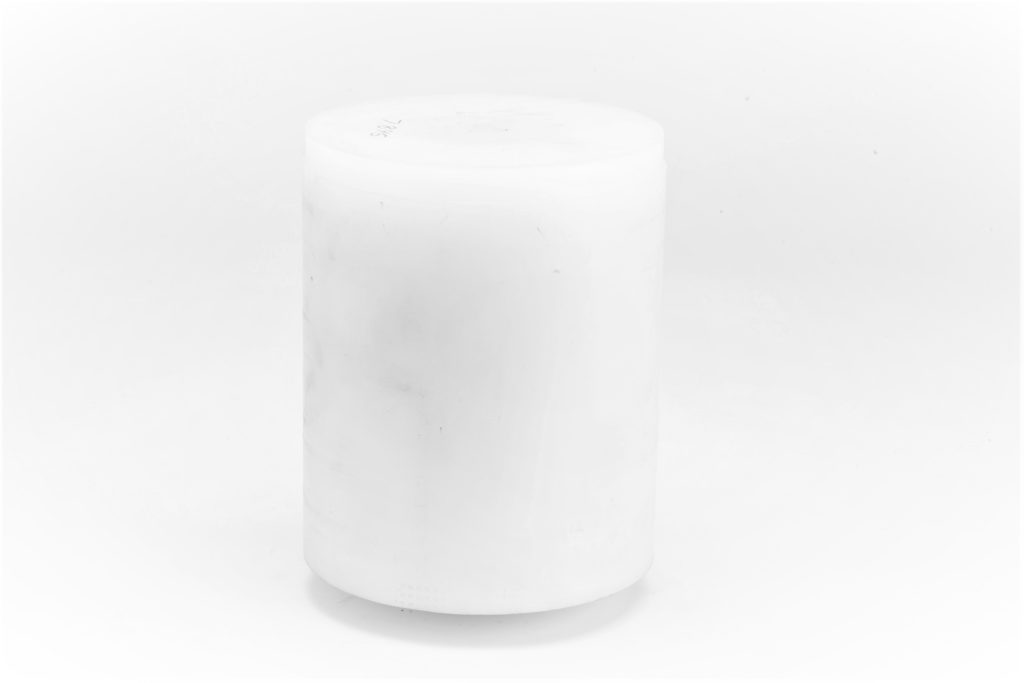

Rod Sizing

Sheet Sizing

48"L

2" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

7" (177.8mm)

96"L

.5" (12.7mm)

.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

Compression Sheet Sizing

48"L x 24"W

0.25" (6.35mm)

.375" (9.53mm)

.5" (12.7mm)

.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

96"L x 48"W

0.25" (6.35mm)

0.375" (9.53mm)

.5" (12.7mm)

.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

120"L x 48"W

.25" (6.35mm)

.375" (9.53mm)

.5" (12.7mm)

.75" (19.05mm)

1" (25.4mm)

1.25" (31.75mm)

1.5" (38.1mm)

1.75" (44.45mm)

2" (50.8mm)

2.25" (57.15mm)

2.5" (63.5mm)

2.75" (69.85mm)

3" (76.2mm)

3.25" (82.55mm)

3.5" (88.9mm)

3.75" (95.25mm)

4" (101.6mm)

Extruded Sheet Sizing

96"L x 48"W

.03" (0.76mm)

.035" (0.89mm)

.06" (1.52mm)

.062" (1.57mm)

.08" (2.03mm)

.09" (2.29mm)

.095" (2.41mm)

.125" (3.18mm)
