Zelux® Family
Zelux® GS

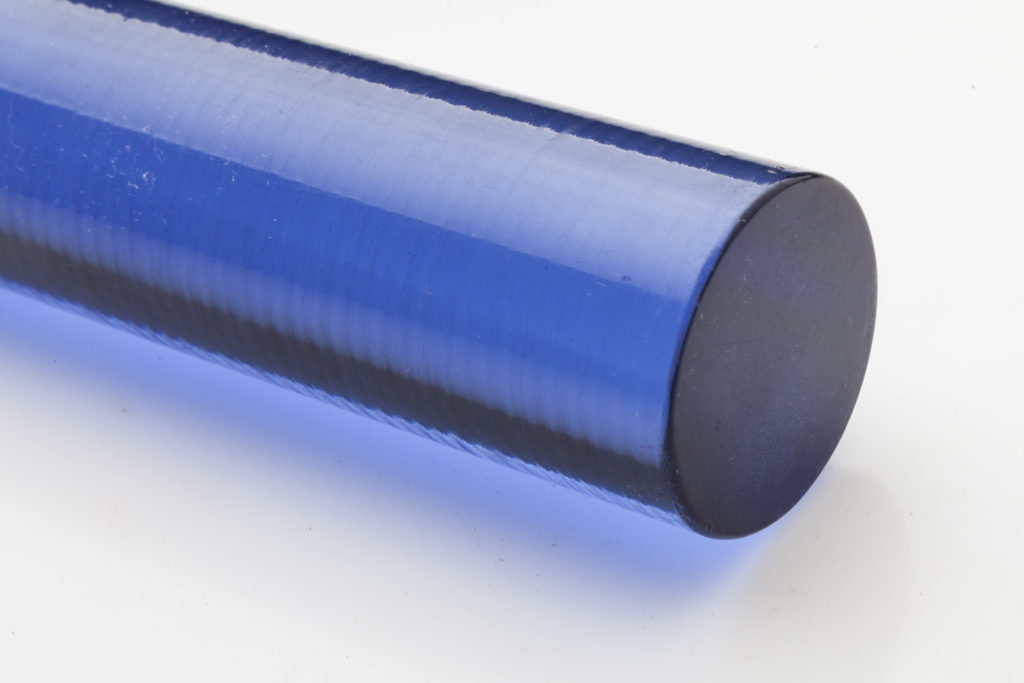

Zelux® GS is a range of extruded polycarbonate preform products designed for medical device and life science applications that are intended to be sterilized via e-beam or gamma irradiation. Product exhibits excellent impact resistance and good strength and stiffness up to 250°F. Polycarbonate resin meets the requirements of USP VI and ISO 10993 biocompatibility standards. Extruded product is fully lot traceable.
Industry
Attributes
Colors Available
Typical Properties
Download Data Sheet | Property | ASTM Test Method | English Units | Metric Units |
| Mechanical | |||
| Flexural Modulus | D790 | 339 kpsi | 2,340 MPa |
| Flexural Strength - Yield | D790 | 14 kpsi | 97 MPa |
| Izod Impact Resistance - Notched | D256 | 16.99 ft-lb/in | 907 J/m |
| Tensile Elongation @ Break | D638 | 135.00 % | 135.00 % |
| Tensile Elongation @ Yield | D638 | 6.50 % | 6.50 % |
| Tensile Modulus | D638 | 335 kpsi | 2,310 MPa |
| Tensile Strength @ Break | D638 | 9.8 kpsi | 68 MPa |
| Tensile Strength @ Yield | D638 | 8.9 kpsi | 62 MPa |
| Thermal | |||
| HDT @ 264 psi | D648 | 255 °F | 124 °C |
| HDT @ 64 psi | D648 | 275 °F | 135 °C |
| Physical | |||
| Moisture Absorption (24h, 23C) | D570 | 0.15% | 0.15% |
| Specific Gravity | D792 | 1.20 | 1.20 |
| *Data above is based on testing of injection molded test specimens | |||
Rod Sizing
Sheet Sizing
Film Sizing
Slab Sizing
Extruded Sheet Sizing
Documentation
No documents found.
